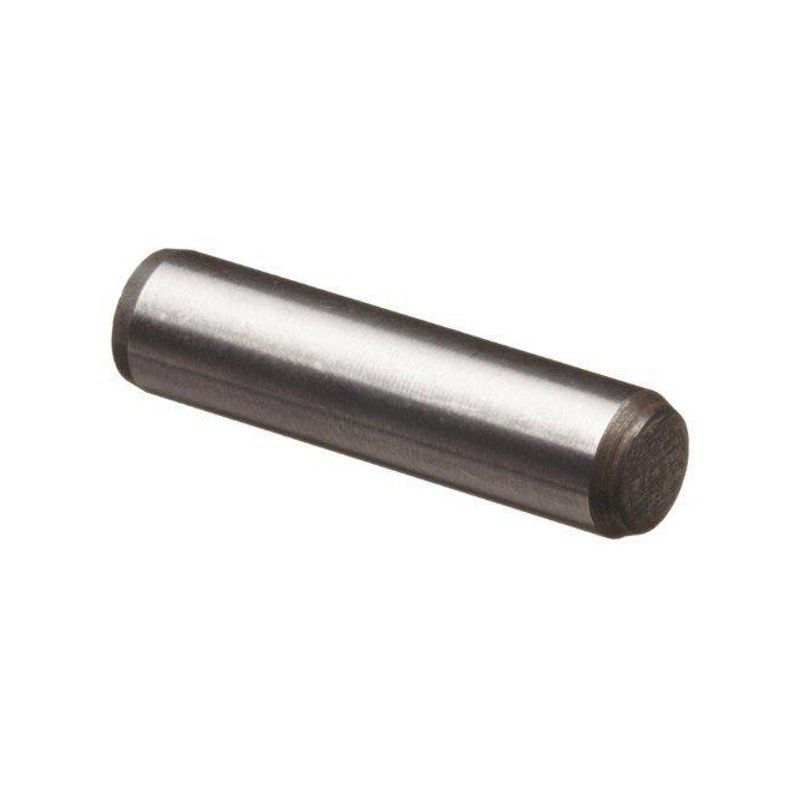

Dowel Pin Specifications
Dowel Pin Specifications
| Body and Hole Dimensions | ||
|---|---|---|
| Normal Pin Size | Suggested Hole Diameter for Standard Series Pins |
|
| Max. | Min. | |
| 1/16 | 0.0625 | 0.062 |
| 5/64 | 0.0781 | 0.0776 |
| 3/32 | 0.0937 | 0.0932 |
| 1/8 | 0.125 | 0.1245 |
| 5/32 | 0.1562 | 0.1557 |
| 3/16 | 0.1875 | 0.187 |
| 1/4 | 0.25 | 0.2495 |
| 5/16 | 0.3125 | 0.312 |
| 3/8 | 0.375 | 0.3745 |
| 7/16 | 0.4375 | 0.437 |
| 1/2 | 0.5 | 0.4995 |
| 5/8 | 0.625 | 0.6245 |
| 3/4 | 0.75 | 0.7495 |
| 7/8 | 0.875 | 0.8745 |
| 1 | 1 | 0.9995 |
