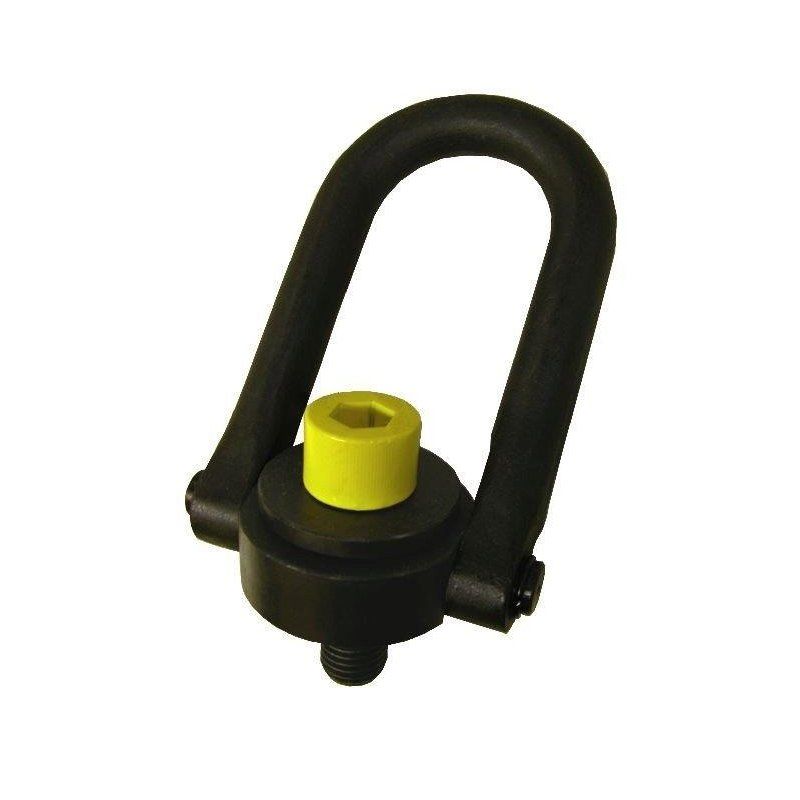

Swivel Hoist Rings

Standard U-Bar - Inch

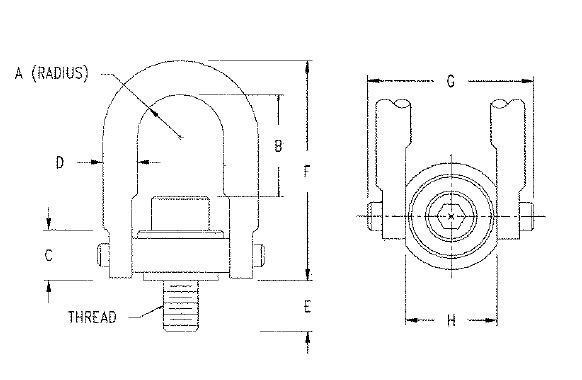

Rated Load (lbs.)	Thread Size	A	C	D	E	Part No.	B	F	G	H	Torque (Ft/lbs)	Wt. (lbs)
24,000	1-1/2-6	2.25	2.81	1-3/4	2.7	AK46404	6.41	12.47	8.55	4.87	800	34
24,000	1-3/4-5	2.25	2.81	1-3/4	2.7	AK46408	6.41	12.47	8.55	4.87	800	34
30,000	2-4-1/2	2.25	2.81	1-3/4	2.96	AK46400	5.91	12.47	8.55	4.87	800	36
50,000	2-1/2-8	3	4.09	2-1/4	4	AK47002	8.03	16.87	11.67	6.52	2100	88
50,000	2-1/2-4	3	4.09	2-1/4	4	AK47006	8.03	16.87	11.67	6.52	2100	88
75,000	3-4	3.75	5.27	2-3/4	4.2	AK47200	8.48	19.5	14.15	8.1	4300	166
100,000	3-1/2-4	4	6.06	3-1/4	7	AK47402	9.28	22.09	15.9	8.6	5100	265
250,000	6-4	6	14	5	9	AK47602	14	33	25	13	9900	790
Standard U-Bar - Metric
Rated Load (Kgs)	Thread Size	A	C	D	E	Part No.	B	F	G	H	Torque (N-M)	Wt. (Kgs)
11,000	M36x4.00	57	71	44	64	AK46966	166	317	217	124	1085	15.5
12,500	M42x4.50	57	71	44	82	AK46968	160	317	217	124	1085	16
13,500	M48x5.00	57	71	44	82	AK46970	154	317	217	124	1085	16.8
22,300	M64x6.00	76	103	57	101	AK46972	204	428	296	165	2847	39
31,500	M72x6.00	95	133	70	132	AK46988	220	495	359	206	5830	74
51,000	M90x6.00	102	153	83	177	AK46990	235	561	404	218	6914	118
