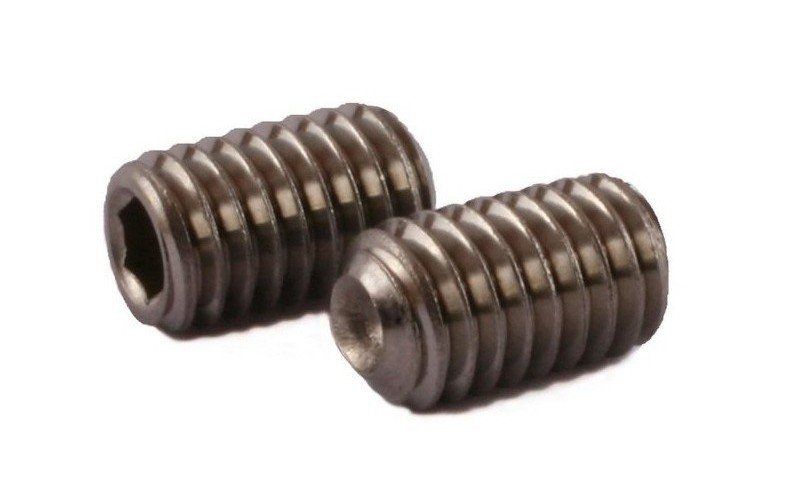

Socket Set Screw
Socket Set Screw Specifications
| Body Dimensions | |||
|---|---|---|---|
| Nominal Size |
Body Screw Diameter |
Hex Socket Size Nom. |
|
| 0 | 0.06 | 0.028 | |
| 1 | 0.073 | 0.028 | |
| 2 | 0.086 | 0.035 | |
| 3 | 0.099 | 0.05 | |
| 4 | 0.112 | 0.05 | |
| 5 | 0.125 | 0.062 | 1/16 |
| 6 | 0.138 | 0.062 | 1/16 |
| 8 | 0.164 | 0.078 | 5/64 |
| 10 | 0.19 | 0.094 | 3/32 |
| 1/4 | 0.25 | 0.125 | 1/8 |
| 5/16 | 0.3125 | 0.156 | 5/32 |
| 3/8 | 0.375 | 0.188 | 3/16 |
| 7/16 | 0.4375 | 0.219 | 7/32 |
| 1/2 | 0.5 | 0.25 | 1/4 |
| 5/8 | 0.625 | 0.312 | 5/16 |
| 3/4 | 0.75 | 0.375 | 3/8 |
| 7/8 | 0.875 | 500 | 1/2 |
| 1 | 1 | 0.562 | 9/16 |
| 1-1/8 | 1.125 | 0.562 | 9/16 |
| 1-1/4 | 1.25 | 0.625 | 5/8 |
| 1-1/2 | 1.5 | 0.75 | 3/4 |
