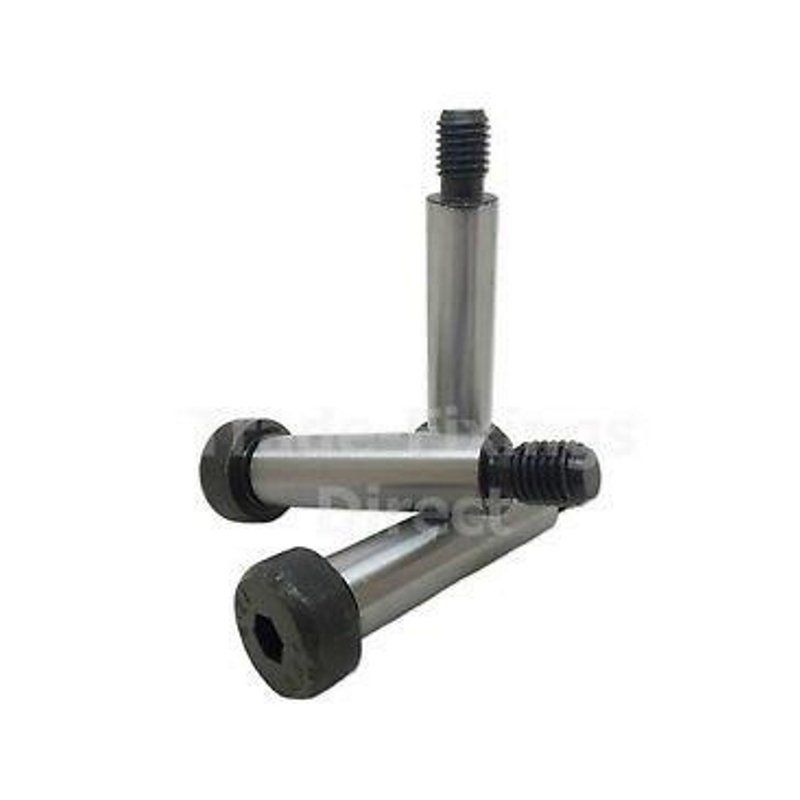

Socket Head Shoulder Screw
Socket Head Shoulder Screw Specifications
| Head and Body Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Screw Diam. | Shoulder Diameter | Head Diameter | Head Height | Hex. Socket Size | Threads Per Inch |
||||
| Max. | Min. | Max. | Min. | Max. | Min. | Nom. | |||
| 1/4 | 0.248 | 0.246 | 0.375 | 0.357 | 0.188 | 0.177 | 1/8 | 0.125 | 24 |
| 5/16 | 0.3105 | 0.3085 | 0.438 | 0.419 | 0.219 | 0.209 | 5/32 | 0.156 | 20 |
| 3/8 | 3730 | 3710 | 0.562 | 0.543 | 0.25 | 0.24 | 3/16 | 0.188 | 18 |
| 1/2 | 0.498 | 0.496 | 0.75 | 0.729 | 0.312 | 0.302 | 1/4 | 0.25 | 16 |
| 5/8 | 0.623 | 0.621 | 0.875 | 0.853 | 0.375 | 0.365 | 5/16 | 0.312 | 13 |
| 3/4 | 0.748 | 0.746 | 1 | 0.977 | 0.5 | 0.49 | 3/8 | 0.375 | 11 |
| 1 | 0.998 | 0.996 | 1.312 | 1.287 | 0.625 | 0.61 | 1/2 | 0.5 | 10 |
| 1-1/4 | 1.248 | 1.246 | 1.75 | 1.723 | 0.75 | 0.735 | 5/8 | 0.625 | 9 |
